PROTIMETER Digital Mini®  Digital MiniBluetooth_FM_Color-2

BLD5775

POUR UNE UTILISATION AVEC:
Wood Drywall Building Materials

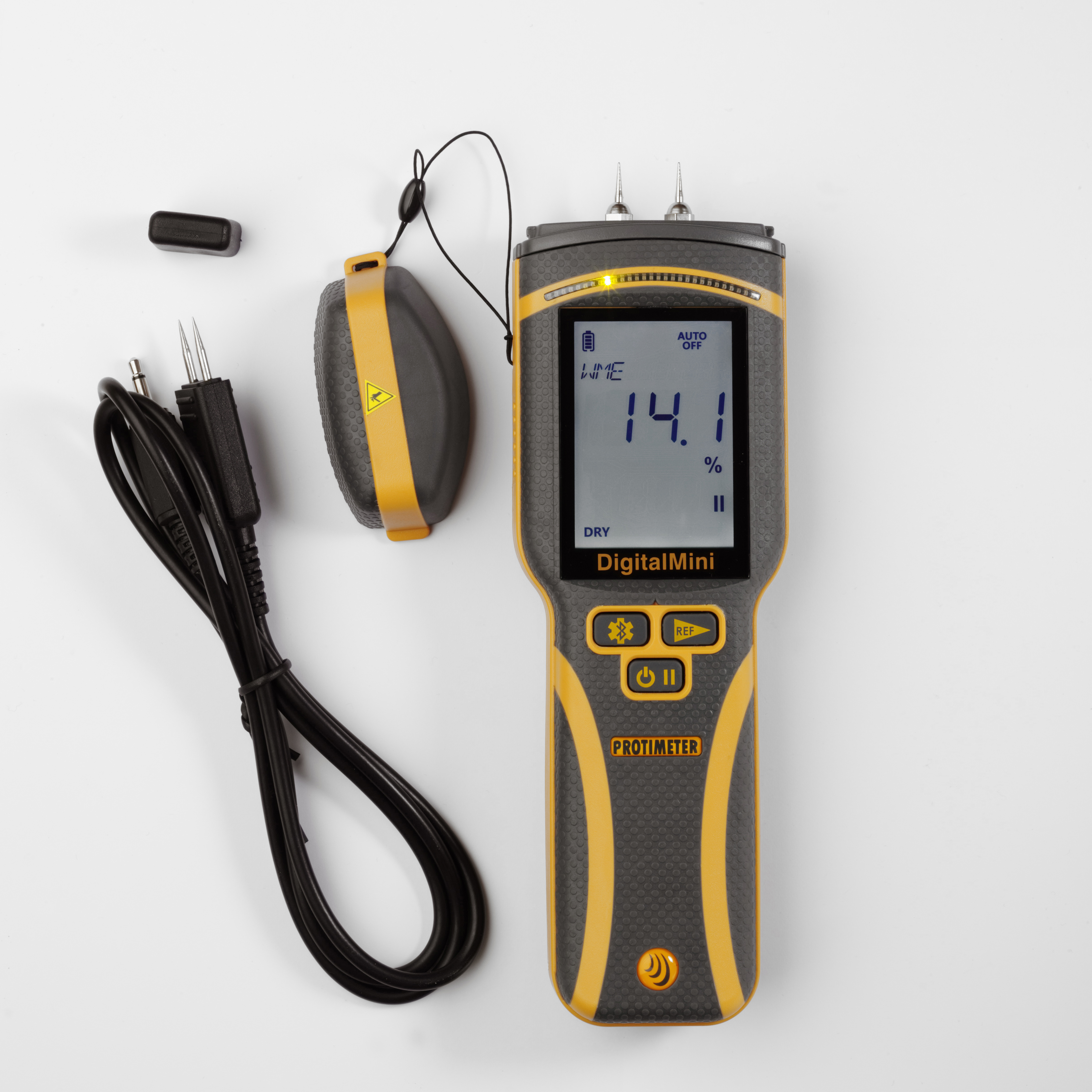

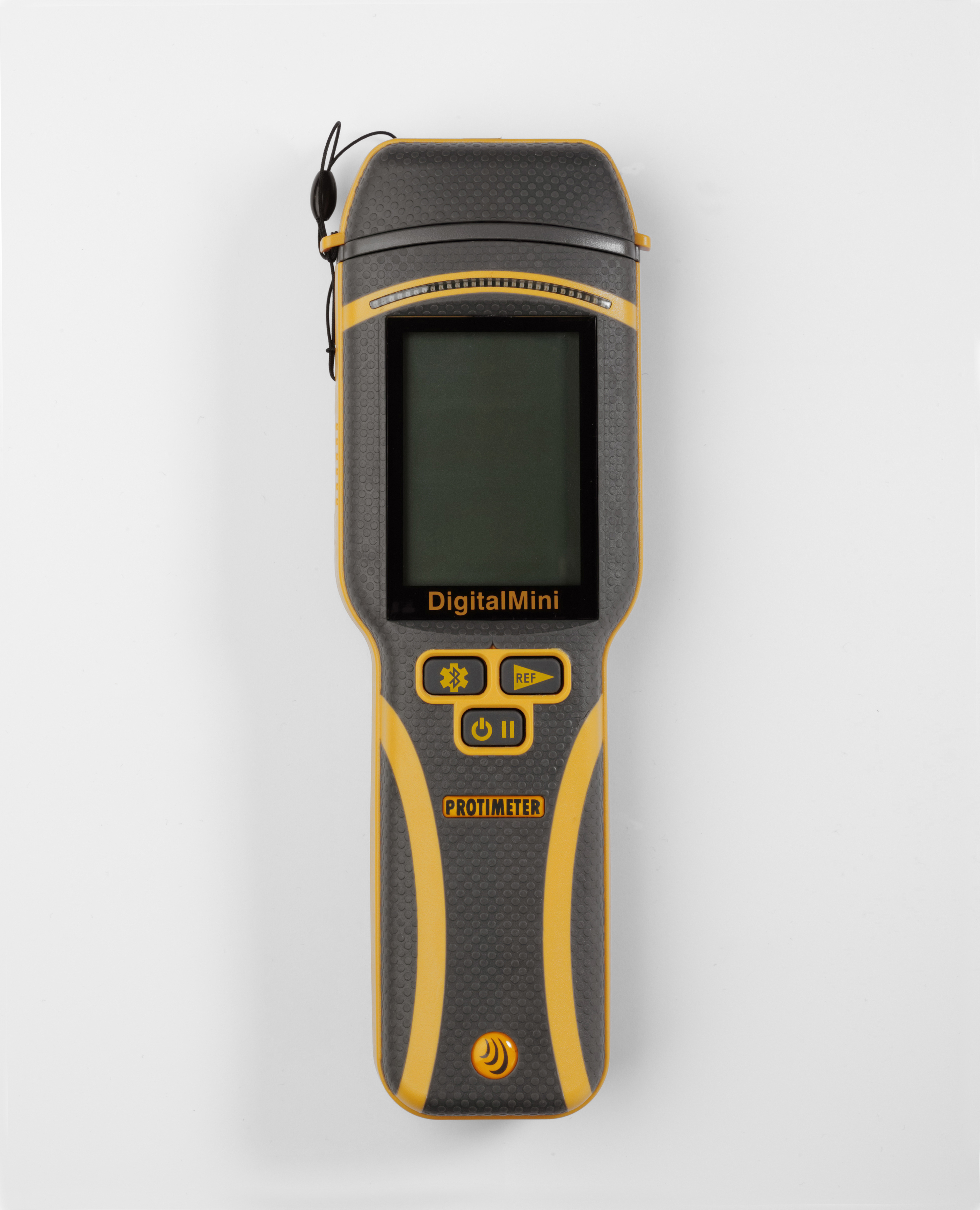

Tough, accurate, easy-to-use. Introducing our portable and precise pin type moisture meter featuring both color LED indication
and a large digital display.



Moisture damage prevention begins with a better diagnosis.



The Protimeter Digital Mini allows building professionals—such as flood damage restoration contractors, surveyors, homebuilders and architects—to assess building moisture levels during new build and refurbishing activities. It helps you easily identify the extent of the moisture penetration, diagnose the cause of the problem and monitor changes in moisture level. Plus, the ability to add optional attachments and a patent-pending reference mode enables you to compare your reading with a baseline measurement.



Our new model also has automatic calibration checks after 50 power cycles, a larger display, and a 3 times longer battery life.



The moisture meter also has Bluetooth to connect and save readings to the Protimeter Connect App. Each reading has a date and time stamp to help you keep track of your measurements.





All Protimeter instruments have a two-year warranty. Two double A batteries are required.





Compatible with the Protimeter Connect App

apple-app-store-travel-awards-globestamp-7

Features

  • Bluetooth Connectivity to download and save readings in the Protimeter Connect App.
  • Rugged construction
  • Large backlit display
  • Pin moisture measurement
  • Wide range of accessory plugins
  • Industry leading 2-year warranty
  • Color Coded LED

Benefits

  • Easy-to-use
  • Allows rapid assessment of building moisture
  • Instant readings in a wide range of building materials

Applications

The Digital Mini is the perfect tool for getting accurate readings in a wide range of building materials. This easy-to-use and rugged pin type meter allows the user to either push the pins deep into the material with its versatile accessories, or lightly press the pins on the surface—barely leaving a mark. The intuitive color LED and backlit LCD provides clear and quick display of high moisture areas. The Digital Mini uses the same attachment as the rest of the Protimeter range, including the Hammer Electrode:

  • Building Survey
  • Fire and flood restoration
  • Concrete surface measurement
  • Indoor air quality
  • Environmental health
  • Wooden sub-floor and hardwood flooring

Options

Part Number Description BLD5702 Standard Kit Optional Accessories
POL5775 Digital Mini Instrument Digitalmini

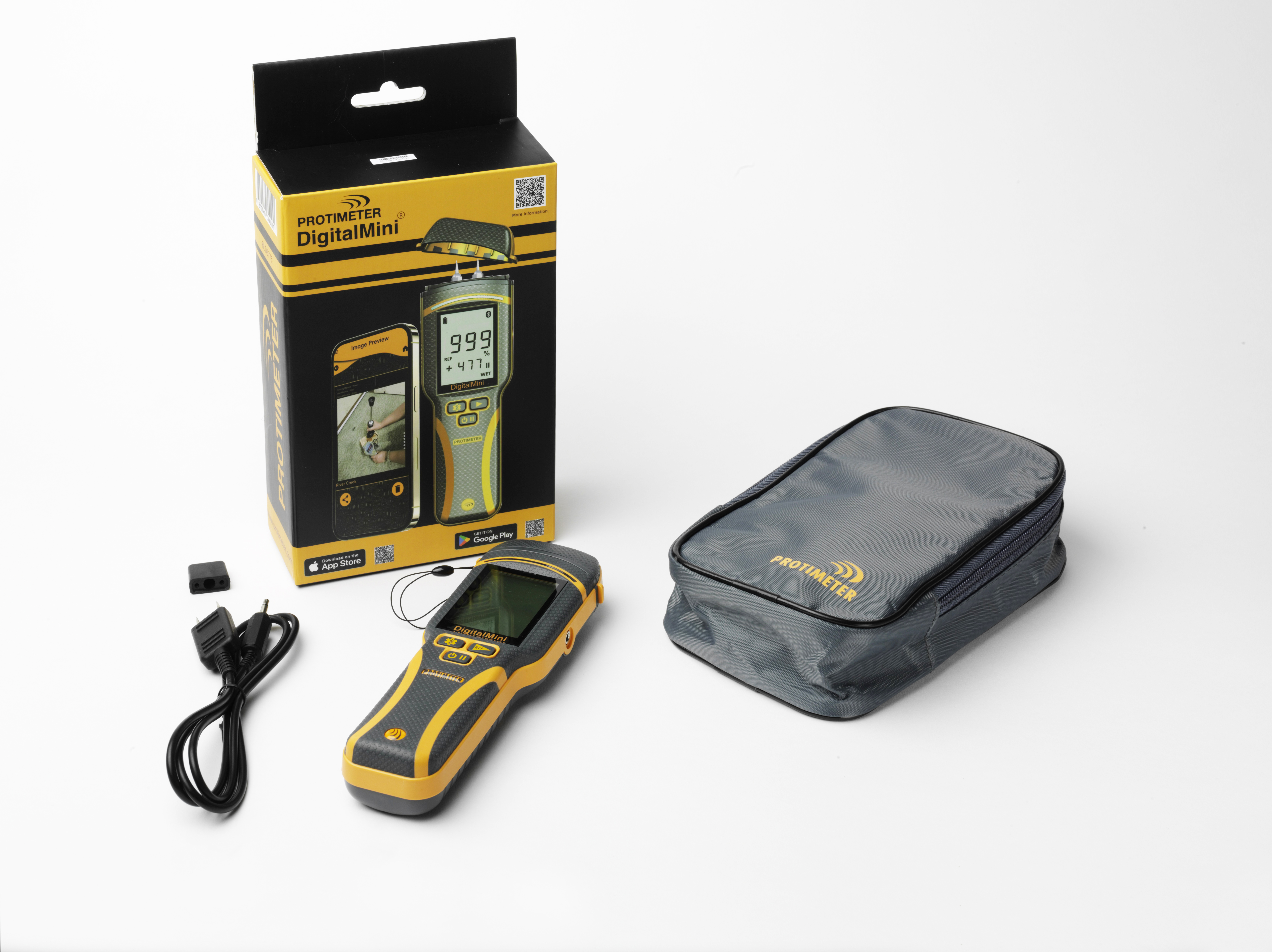

POU85123 Soft Pouch Digitalmini
BLD5055HD Hammer (with 4 needles)   Digitalmini
BLD05296 10 Pack Hammer Pins   Digitalmini
BLD5079T Plug-in Remote Pin Probe Digitalmini
BLD5018 Deep Wall Probes 5" (127mm)   Digitalmini
INS003 Wood Calibration Chart Digitalmini
BLD5020 Deep Wall Probes 9" (230mm)   Digitalmini
BLD5000 Standard Hammer   Digitalmini
BLD5070 EIFS Probe   Digitalmini
BLD05294 EIFS Probe needles 4 pack   Digitalmini
BLD5025 Base Board Probe   Digitalmini
BLD5035 Extension Moisture Probe   Digitalmini

Specifications

Moisture Measurement Range 7.9% to 99% WME (pin measurement)
Dry (green)-7-16.9

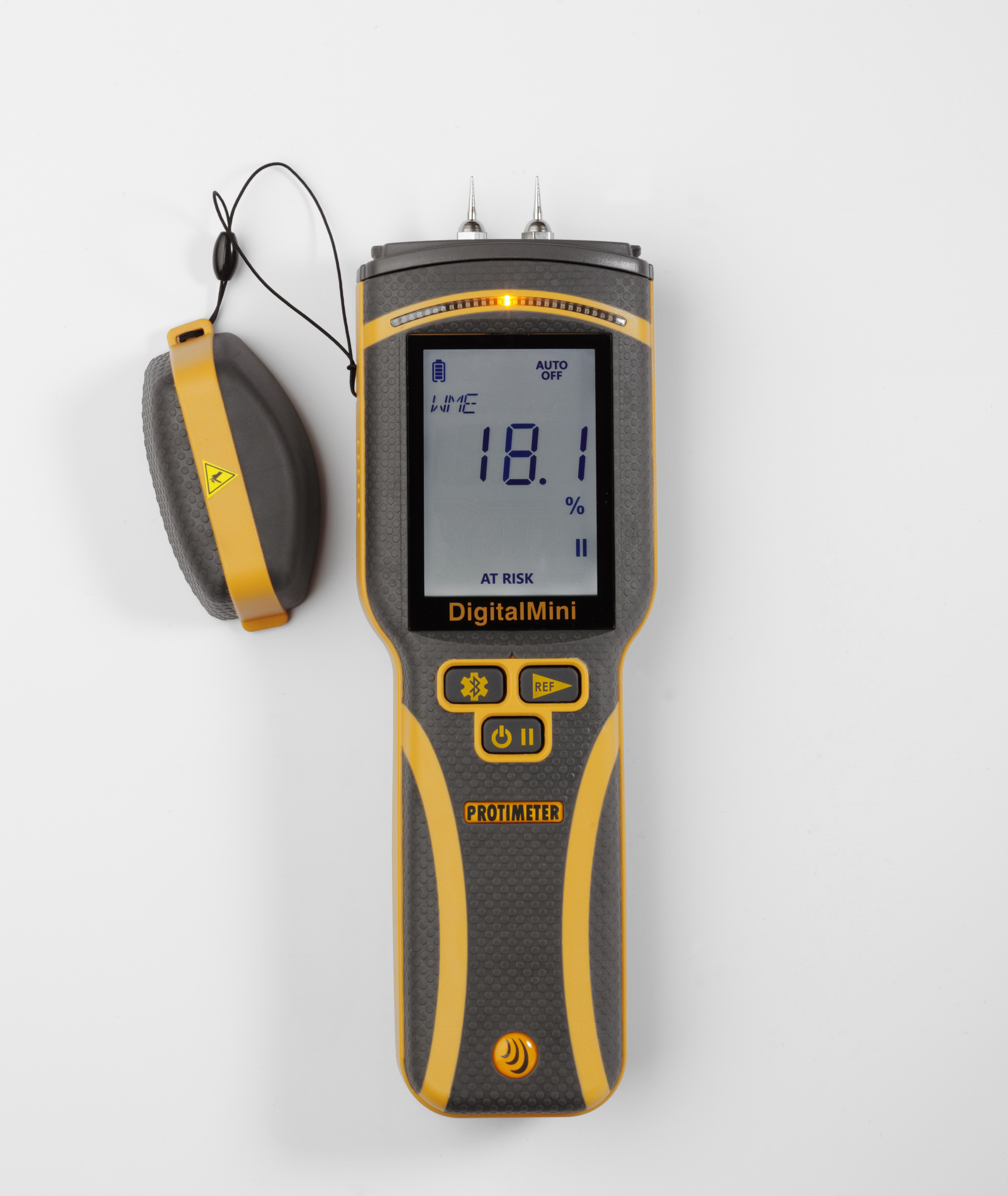

At Risk (yellow) 17-19.9
Wet (red) — 20-99.9
Display 1 Digital LCD backlit
Display 2 60 LEDs green (dry), yellow (at risk) and red (wet)
Depth of Moisture Pin up to 0.5 in (12.7mm)
Power 2x AA (supplied)
Weight 8 oz (including battery)
Dimensions 7.5 in x 2.75 in x 1.9 in
(190 mm x 70 mm x 49 mm)
