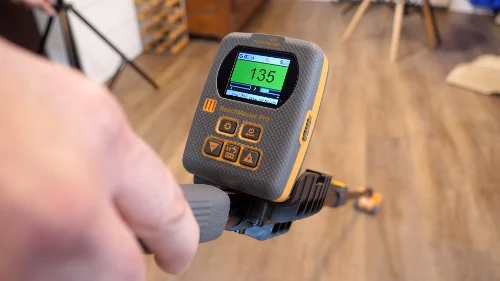

PROTIMETER REACHMASTER PRO®
BLD5777
Features
- Non-invasive moisture measurement
- Wireless communication between sensor head and display

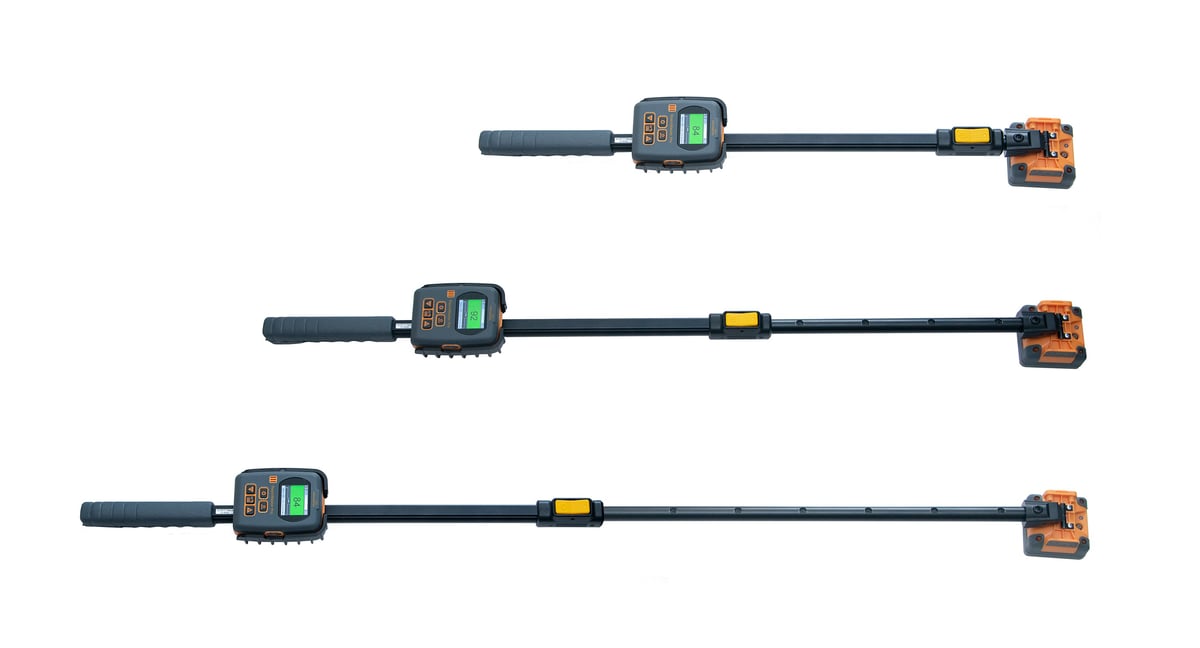

- Telescopic handle adjusts from 27” to 48” (69cm to 114cm)
- Depth of Measurement: Up to 5” (12cm) - Varies with material under test
- Color Display: Tilt-adjustable with red, yellow and green zones
- Measurement Range: 60-999 Relative
- Audible alarm
- Auto shut-off
- Adjustable sensitivity to focus in on moisture source
- Multi-language menu

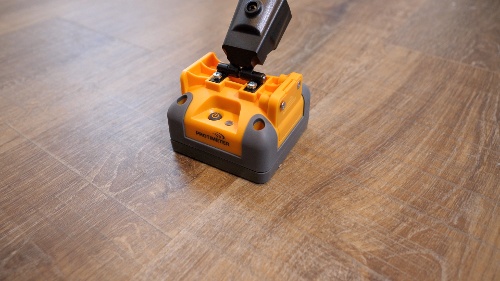

- Replaceable sensor wear plate with wear indicator on abrasion plate (1 spare included)
- Simple field recalibration
- Battery Life: 80 hours on continuous operation
- Battery Requirements: 4x AA in display unit, 2x AA batteries in sensor head
- Firmware upgradeable by user as new features become available
Benefits

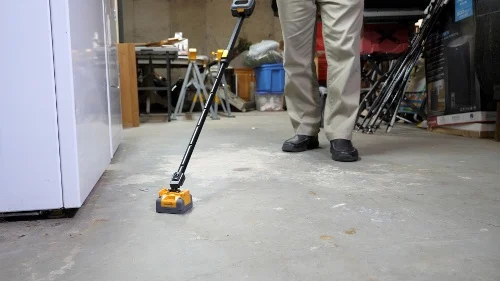

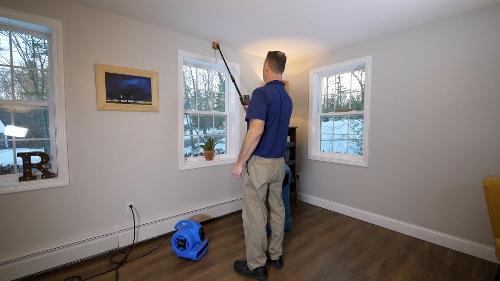

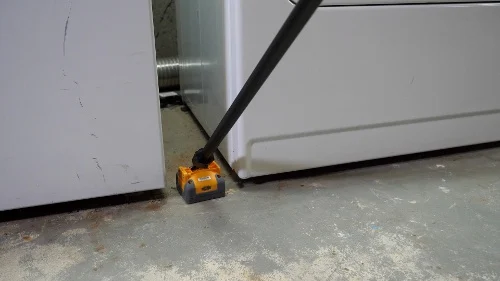

- Easy and quick moisture detection on floors, walls and ceilings

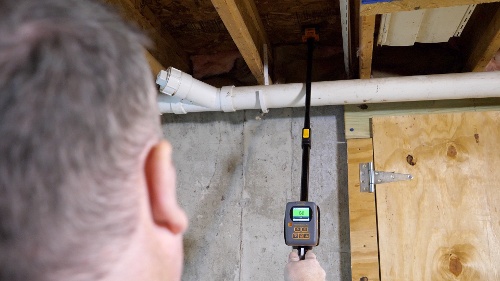

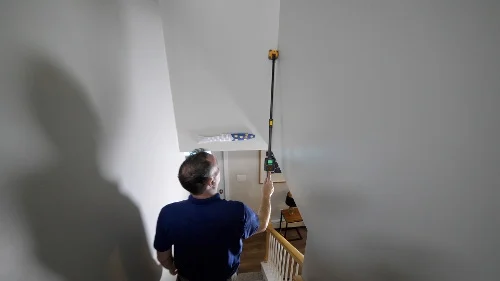

- Eliminates working on hands and knees, as well as climbing ladders
- Not adversely affected by surface moisture
- Significantly quicker moisture assessment than handheld meters
Applications
- Flood damage restoration
- Flooring inspection
- Home inspection
- EIFS inspection
- Rubber roof leak detection
- Fiberglass marine hull inspection
Specifications
| Operating Conditions: | Temperature: 0°C to 50°C |
|---|---|
| Measurement Specifications: | Non-invasive, instantaneous readings Surface moisture is not adversely affected |
| Measurement Depth: (Varies with material under test) |
Maximum: 5” (12cm) |
| Power Requirements: | Sensor Head: 2x AA Alkaline Batteries ~ 2700mAH Display Module: 4x AA Alkaline Batteries ~ 2700mAH |
| Battery Indications: | Battery level indication on display unit Battery low LED indication on sensor unit Battery level indication on display |
| Gross Weight: | 24.7 oz (700 g) - Instrument only |
| Regulatory Compliance: | CE, RoHS, ETL |
| User Interface: | Display Graphical LCD Size: 2” Resolution: 176 X 220 Backlight (with adjustable brightness) User application profiles Sticky memory, last used application settings |
