Overview

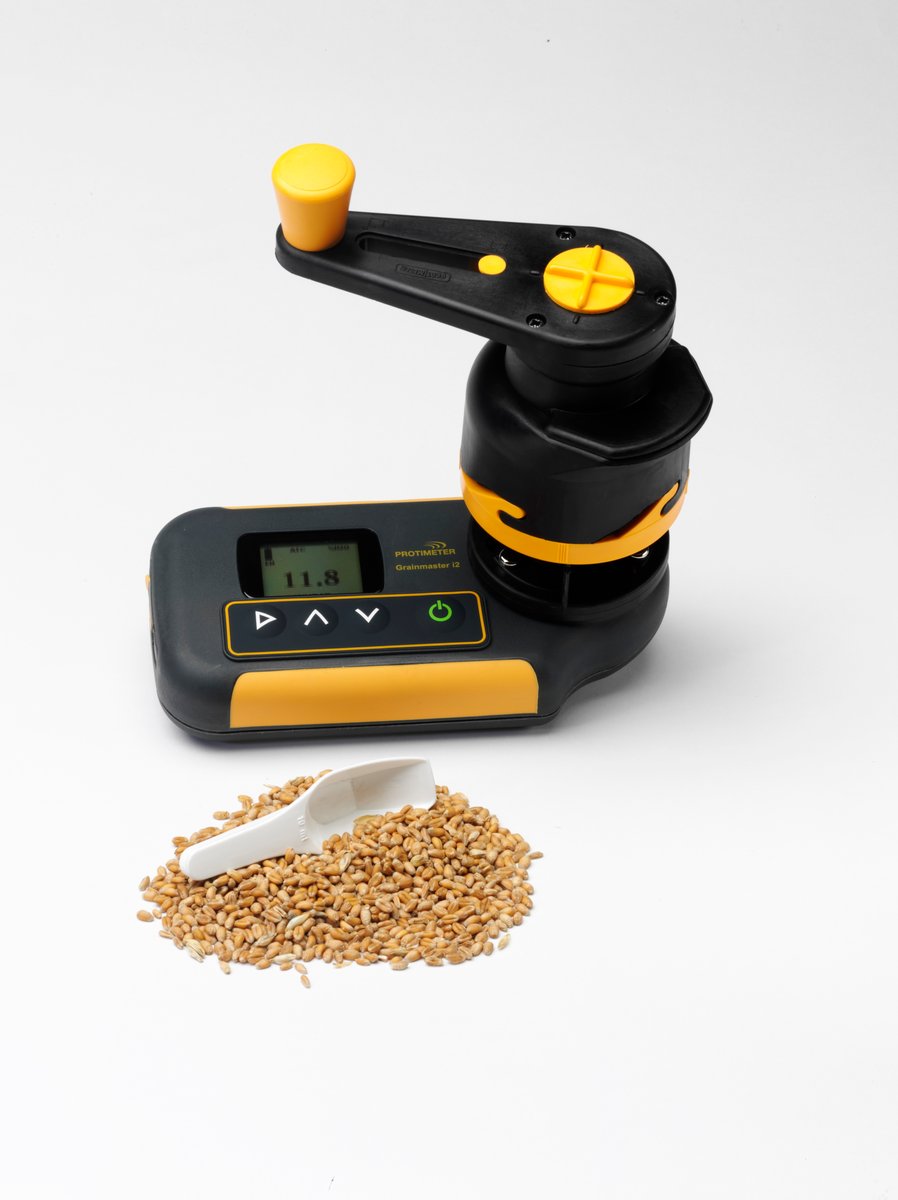

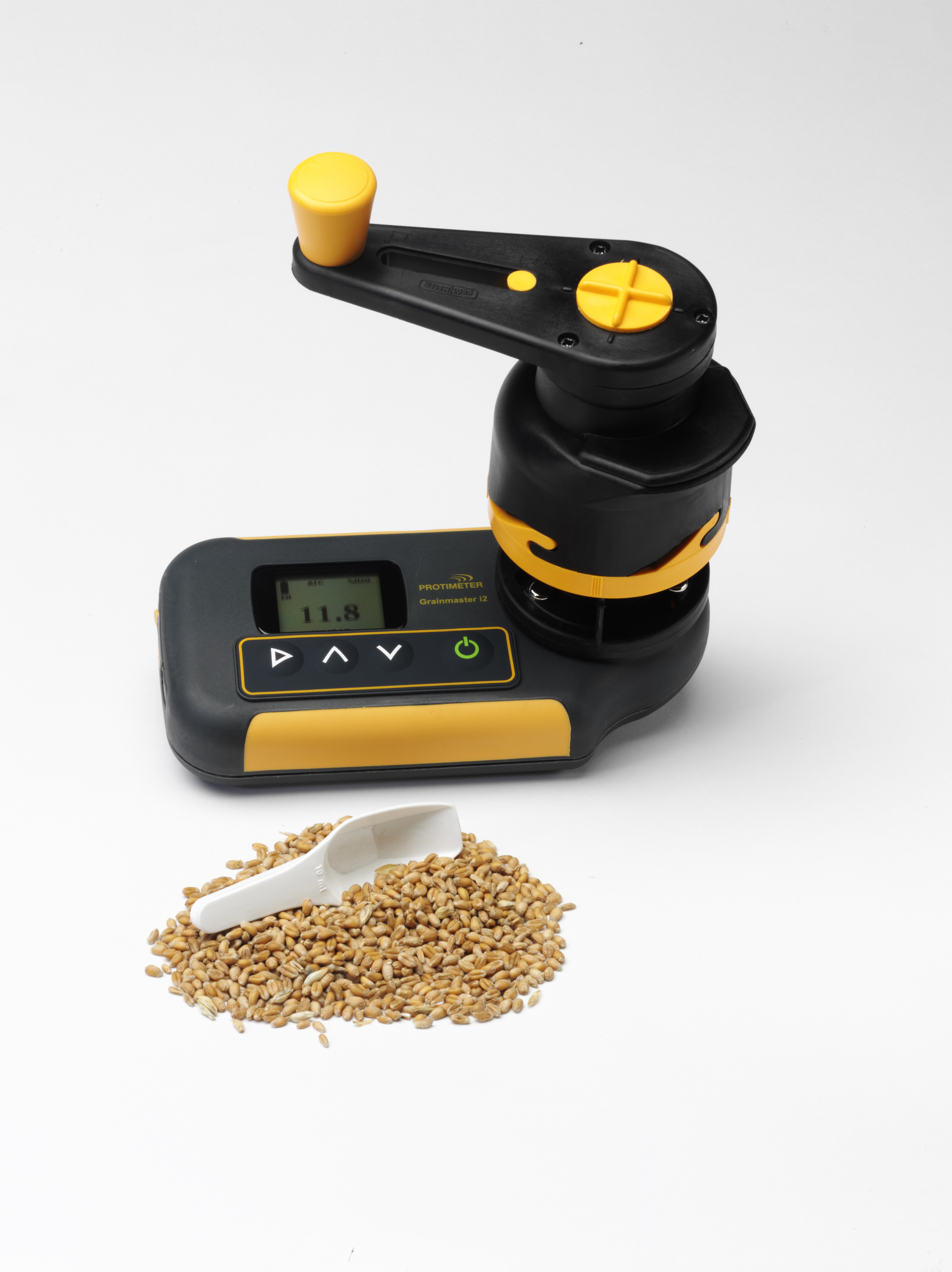

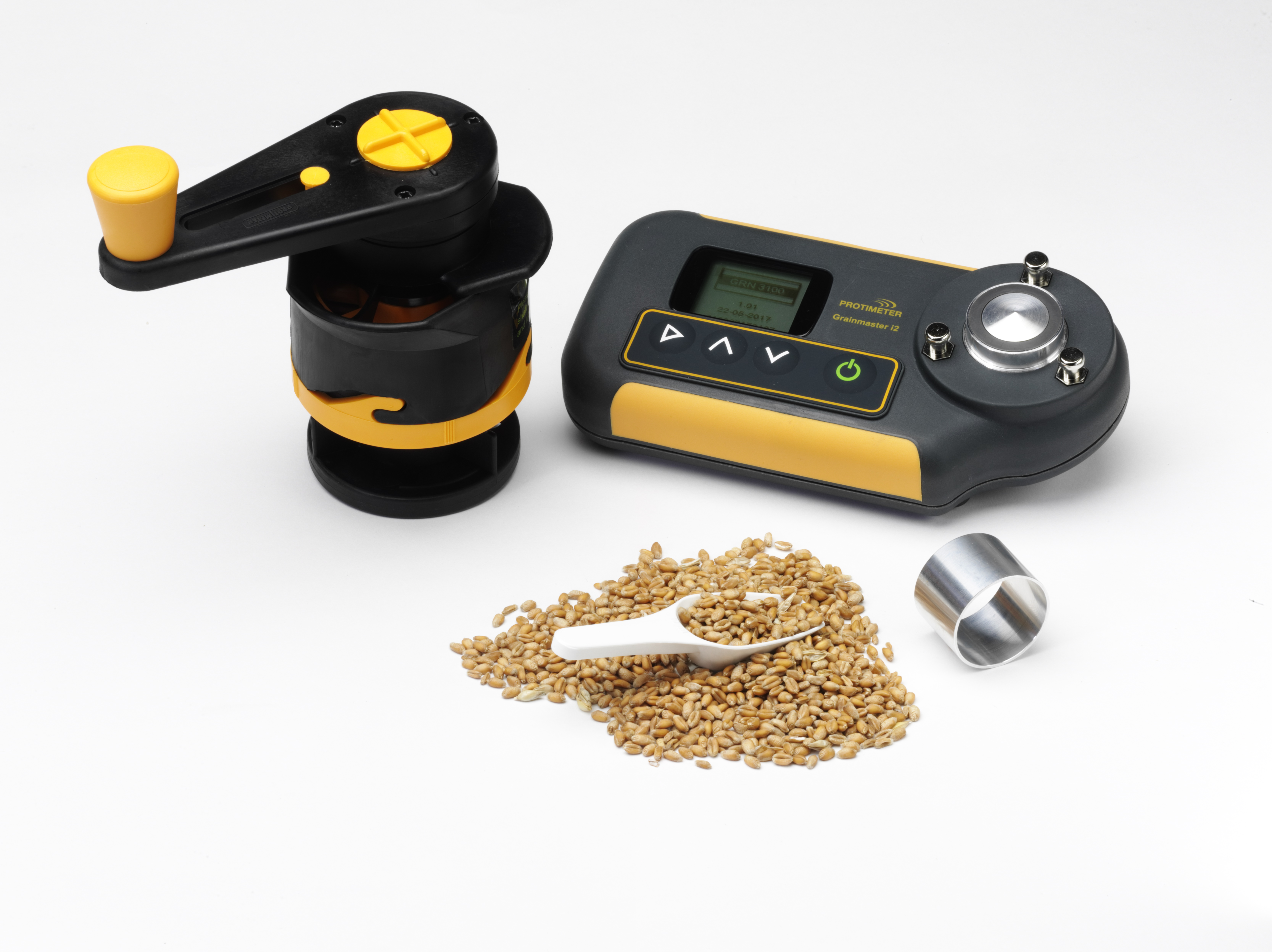

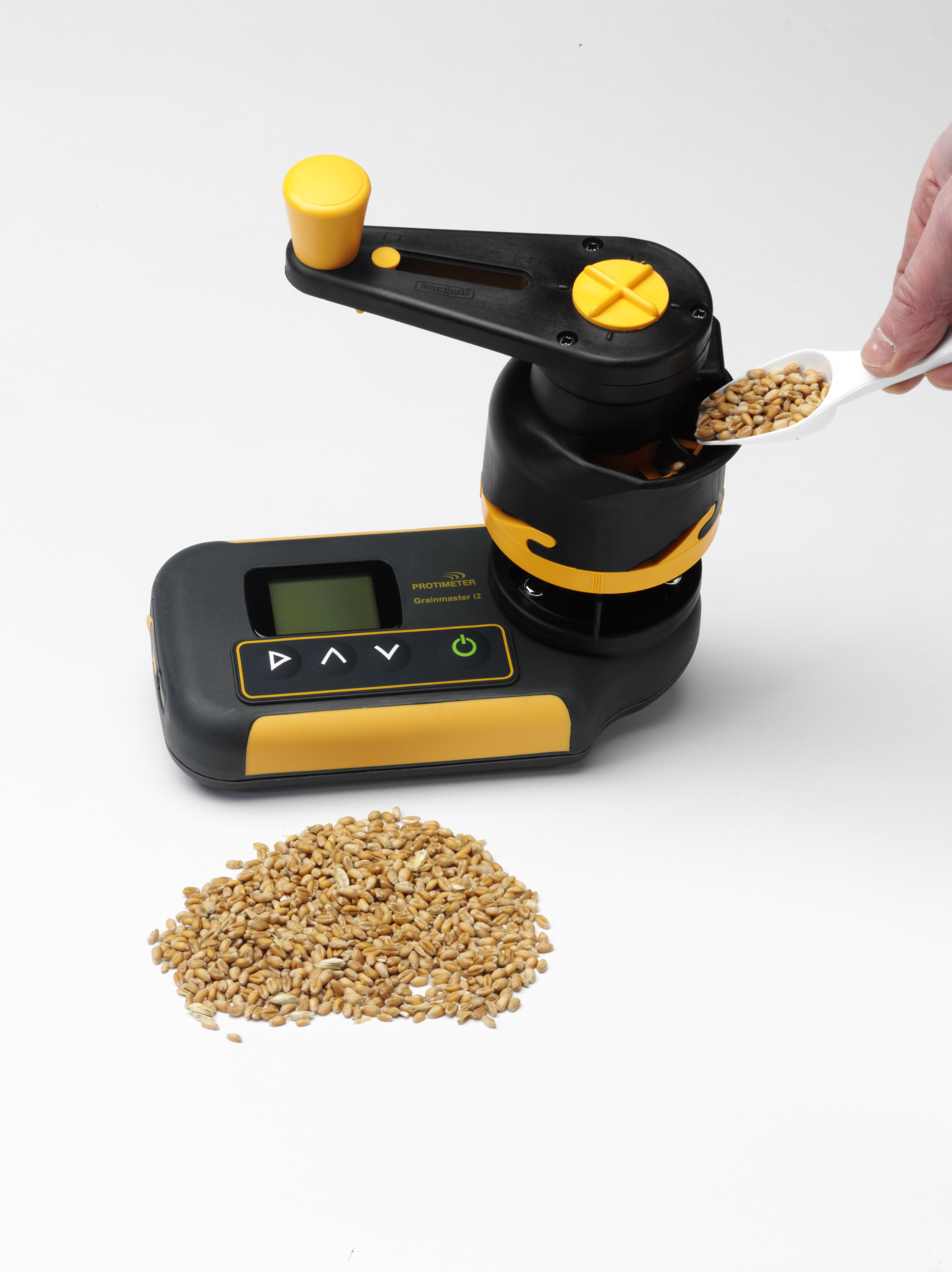

Protimeter Grainmaster i2 uses the ground grain moisture testing method for unrivaled repeatability and accuracy. It can also be used with optional probes to measure temperature in grain, as well as moisture in hay and straw.
Applications

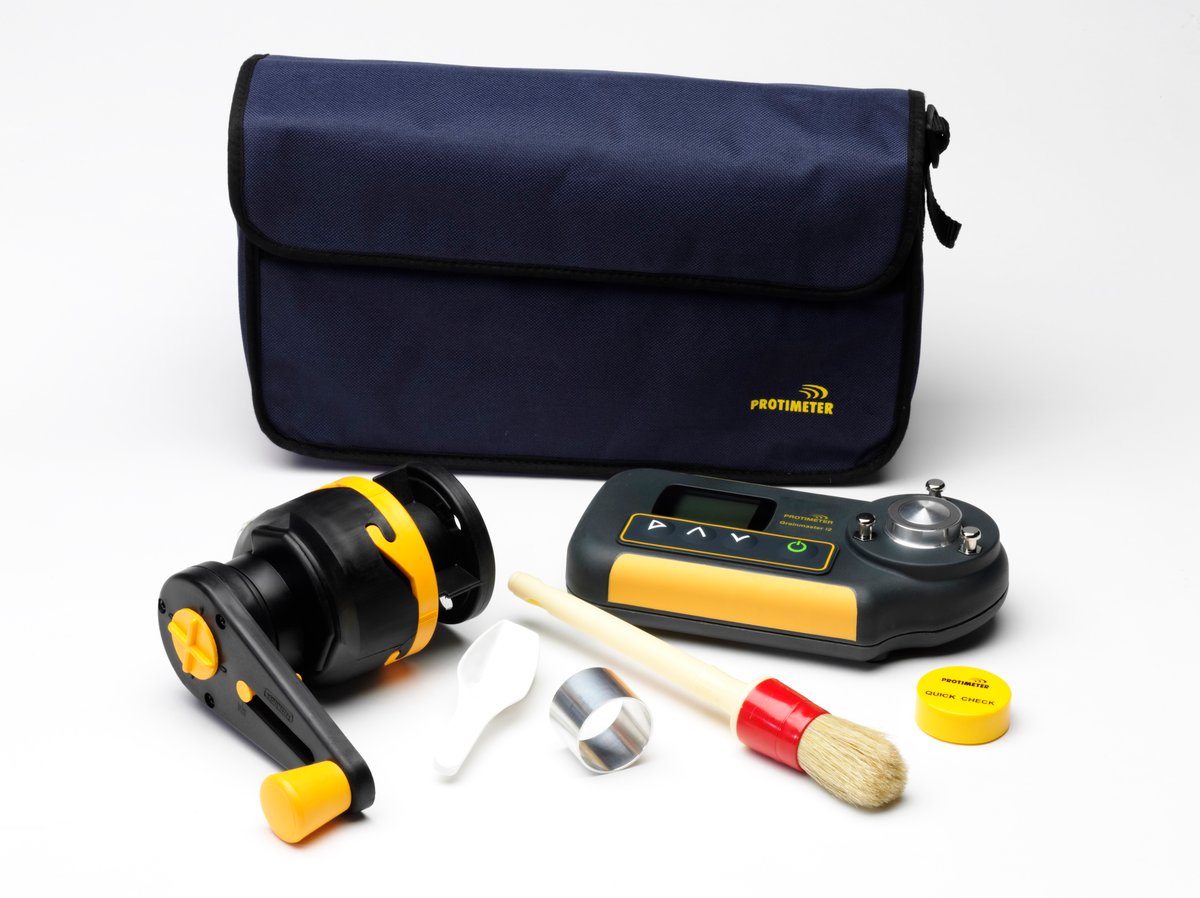

The Protimeter Grainmaster i2 is supplied in a pouch with grinder compressor unit, grain cup, sample spoon, brush and 'Quickcheck'. With following crop calibrations pre-programmmed into the instrument:
Wheat
Barley
Oats
Oilseed Rape
Barley
Oats
Oilseed Rape
Canola
Lindseed
Peas
Corn
Lindseed
Peas
Corn
Sunflower
Coffee
Soya
Rice
Coffee
Soya
Rice
Sorghum
Paddy
Beans
Paddy
Beans
Optional probes can be used with the Grainmaster i2, for integrated moisture and temperature measurement capability. The Fast Response Temperature Probe and the Moisture and Temperature Probes used for grain storage management applications and the "Baleprobe" to be used to measure moisture levels in hay/straw bales.
Specifications
| Weight of Instrument complete with Grinder-Compressor Unit | 1kg |
|---|---|
| Dimensions of Instrument complete with Grinder-Compressor Unit | Size: 195mm length x 185 mm height x 100 mm width |
| Power | x1 6F22R 9V battery |
| LCD Resolution | 0.1 |
| LCD Technology | Sunlight visible graphical display |
| Operating Temperature Range | 0°C to 50°C |
| Bluetooth | 4.2 BLE |
| Software Upgrade | USB |
| Language | Configurable through settings |
