PROTIMETER BaleMaster®

    GRN6170

    FOR USE WITH:
    •Straw •Hay

    Durable meter for rapid assessment of moisture levels in straw and hay bales.

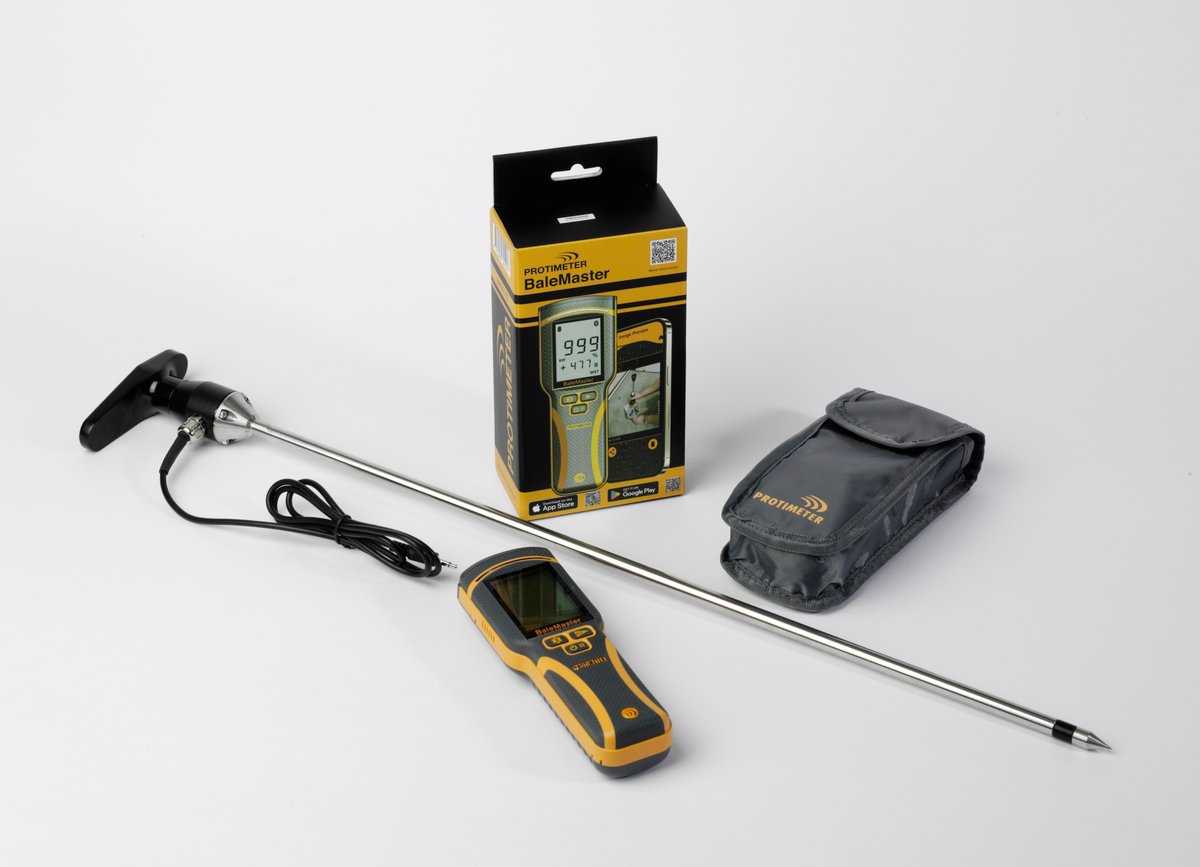

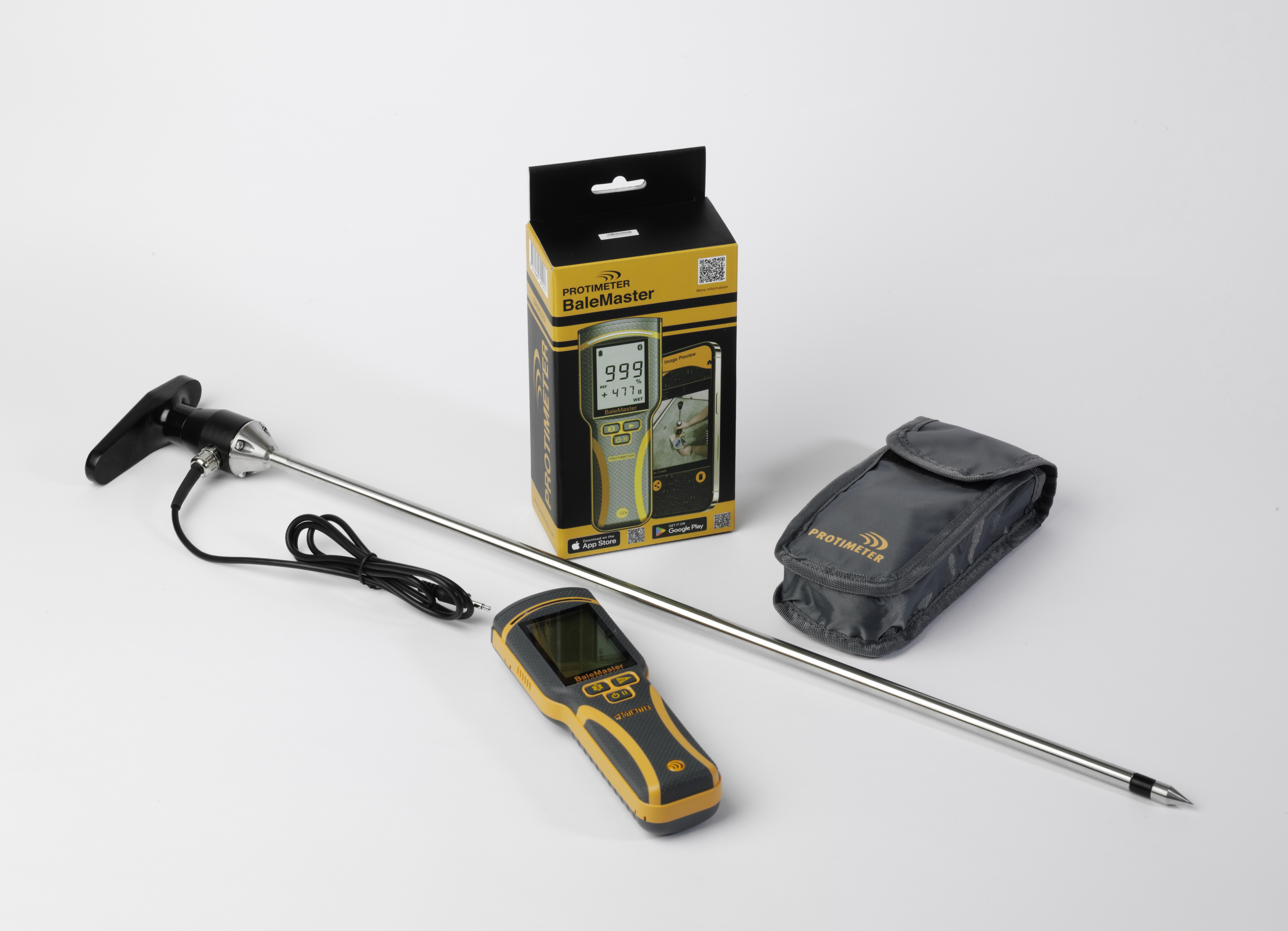

    The Protimeter BaleMaster comes with a Bale probe and the meter itself. Equipped with a large LED display and colour arc to let you know if it is dry, at risk, or wet and a new battery that lasts 3 times longer than the previous model.



    The meter also connects to the Protimeter Connect App using its Bluetooth capabilities so that you can save and download readings that will be logged with time and date stamps.



    All Protimeter Moisture Meters come with a 2-year warranty.



    Use the button below to shop through our distribution network.







    Buy Online Video Library

    Compatible with the Protimeter Connect App

    apple-app-store-travel-awards-globestamp-7

    Click the image above to download.

    Features

    • Measurement Range: 8.5% - 36.8%
    • Strong, robust stainless steel moisture probe
    • Easy to read digital display

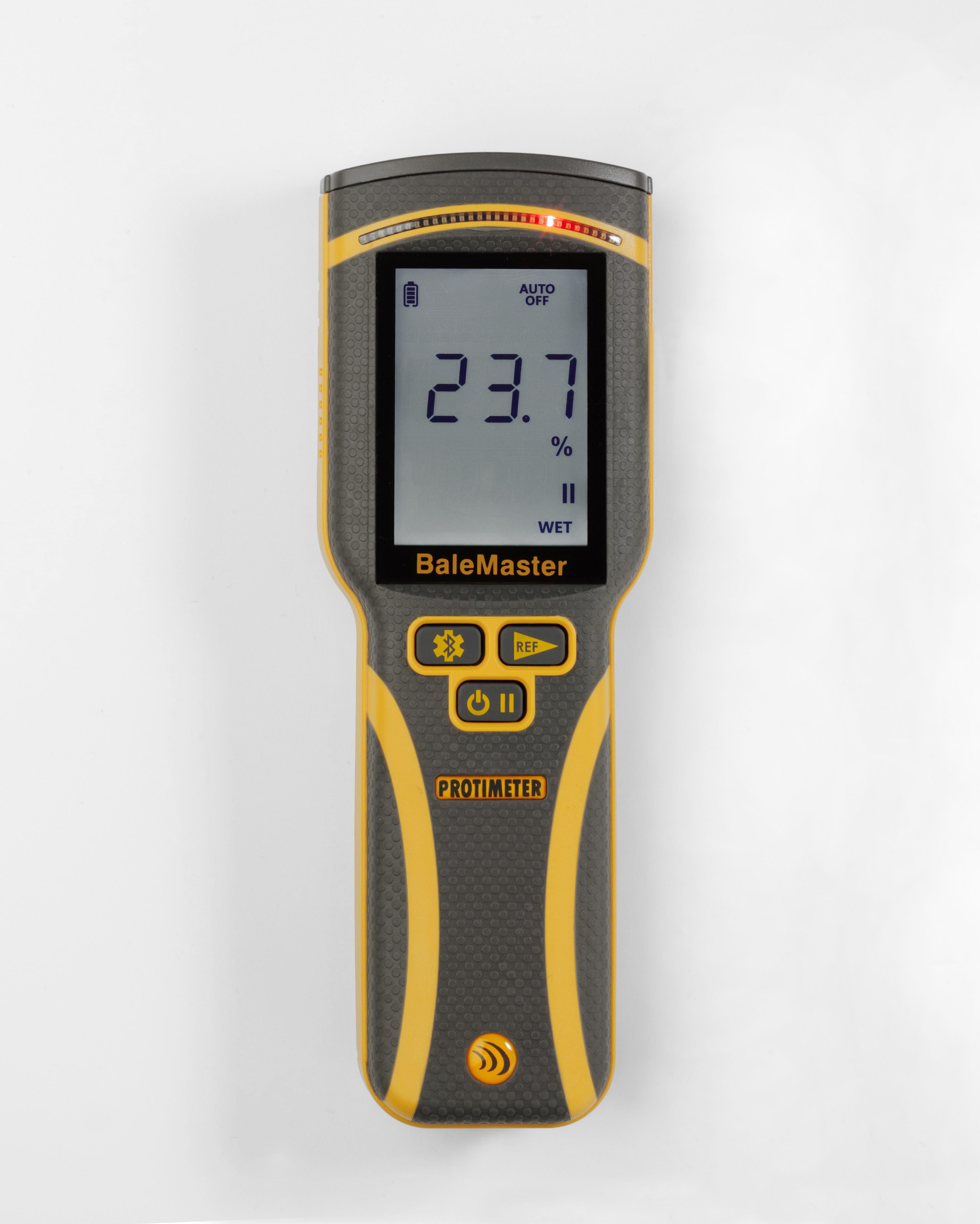

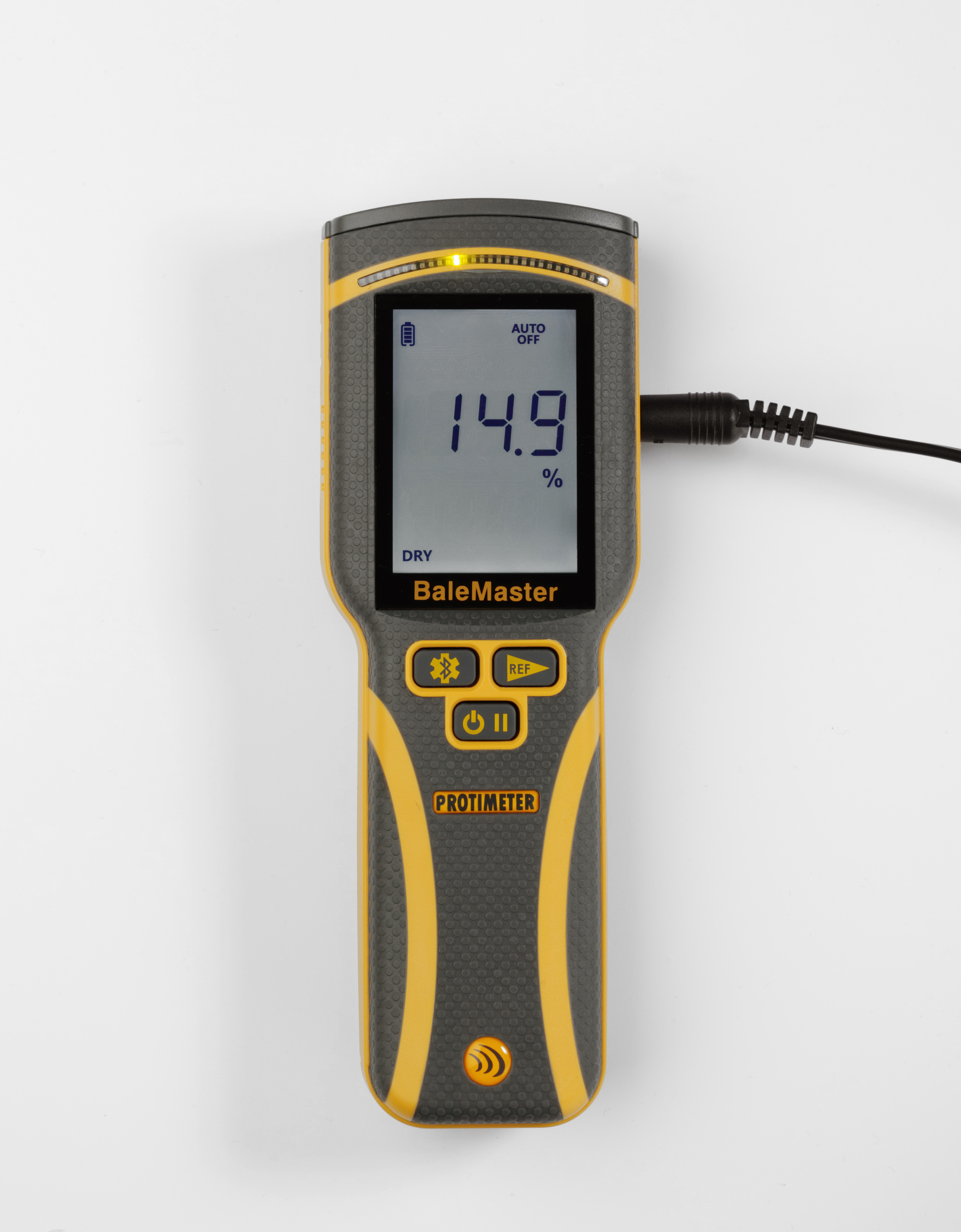

    • Colour arc LED display to show moisture condition:
    • Green (Dry)
    • Yellow (At Risk)
    • Red (Wet)
    • Dual display LCD and LED for easy reading
    • Audible tone

    Specifications

    Operating Conditions
    • Operating temperature range: 0°C to 50°C
    • Humidity: 0 to 90% RH, non-condensing
    Measurement Range
    • 8.5% to 36.8%

    • Green (Dry) 8.5-15%
    • Yellow (At Risk) 15.1-19.5%
    • Red (Wet) 19.6-36.8%
    Power  3V (2xAA) 2700mAh
    Dimensions and Weight
    • Size: 177mm x 63mm x 35mm (7” x 2.5” x 1.4”)
    • Gross Weight: 220g
    Probe Dimensions:
    • Length 584mm (23”)
    • Diameter 10mm (0.4”)
    Buzzer Multi tone indication for moisture level with turn On/Off feature
    Regulatory Compliance CE, RoHS, ETL, FCC, UKCA, R-NZ
    Warranty 2 years on mechanical or manufacturing defects. Does not include wearing parts or accessories
    Part Numbers
    • GRN6170 - Balemaster instrument and probe
    • GRN6148 - Balemaster probe
    Protimeter Connect App All new Protimeter devices are equipped with BLE connectivity for the users to monitor the value through the app and collect data as pictures or as spreadsheet

    Downloads- Other Languages Coming Soon!

    United Kingdom Unites States Balemaster Datasheet (English) United Kingdom Unites States Balemaster Manual (English)
