PROTIMETER HYGROMASTER® 2  HYGROMASTERHYGROMASTER

Faster than Fast.

The latest in handheld hygrometry technology!



The attachments aren’t just included, they’re built in! The Protimeter Hygromaster 2 features outstanding performance with an easy-to-use interface, in addition to multiple Psychometric calculations and non-contact surface infrared (IR) temperature probe.



All Protimeter instruments have a two-year warranty.



Click the image above to download.

Features

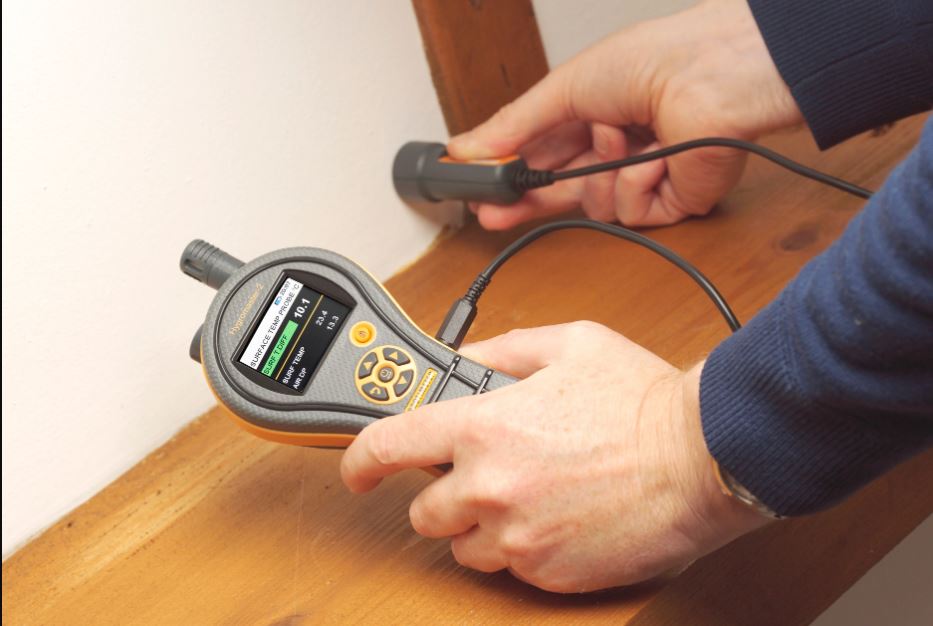

  • Infrared non-contact surface temperature

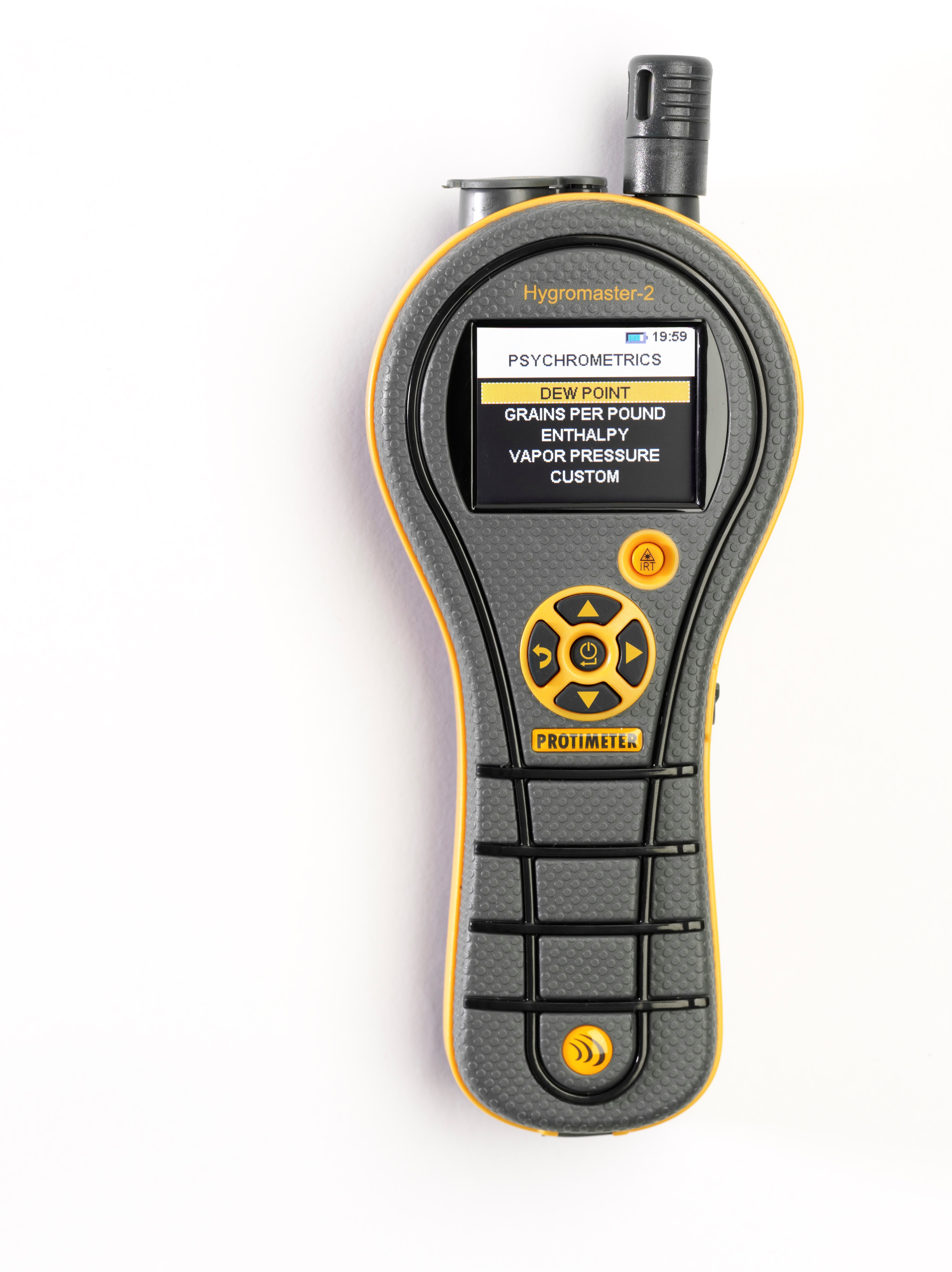

  • Psychrometric Calculations
  • Data logging
  • Simple to use interface with color display

Benefits

  • Fast temperature and humidity response
  • Replaceable humidity and temperature sensor
  • Highly accurate

Applications

  • Flood damage restoration
  • Building survey
  • Concrete moisture
  • HVAC test and measurement
  • Commercial coatings

Specifications

Gross Weight 8 oz (227 gms)
Dimensions (LxWxH) 7 in X 3.2 in X 1.5 in (178 mm X 81 mm X 38 mm)
Display Color LCD
Batteries (Included) 9 V
Warranty 24 months on mechanical or manufacturing defects. Does not include wearing part or accessories.
Plug in Temperature Probe Surface Temperature Probe - BLD5805 Range 32°F to 158°F (0°C to 70°C)
Accuracy at 77°F (25°C) +/- 1.3°F (0.7°C)
Infrared Surface Temperature Range IR Based – With 12:1 (D:S) Ratio
Range -4°F to 176°F (-20°C to 80°C)
Accuracy ±3.6°F (±2°C)
Hygrostick Data (Nominal) 30% to 40% RH (±3% RH) at 68°F (20°C).
41% to 98% RH (±2%) at 68°F (20°C).
Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C)
Quikstick and Quikstick ST Data (Nominal)

Quikstick (Used for Ambient Readings)

    • 0% to 10% RH, ±3% RH at 77°F (25°C),

      10% to 70% RH, ±2% RH at 77°F (25°C),

      70% to 99% (non-condensing) RH, ±3% RH at 77°F (25°C)

      Temperature Range 32°F to 122°F (0°C to 50°C) ±0.69%°F (±0.5°C)

    • Nominal response 30% to 90% and back to 30% RH in 45 seconds @ 68°F (20°C)
Data Storage Store up to 8,000 results with date and time stamp from all instrument functions with the push of a button.
Store 6100 results with automatic logging.

Options

   S=Standard supply    O=Optional

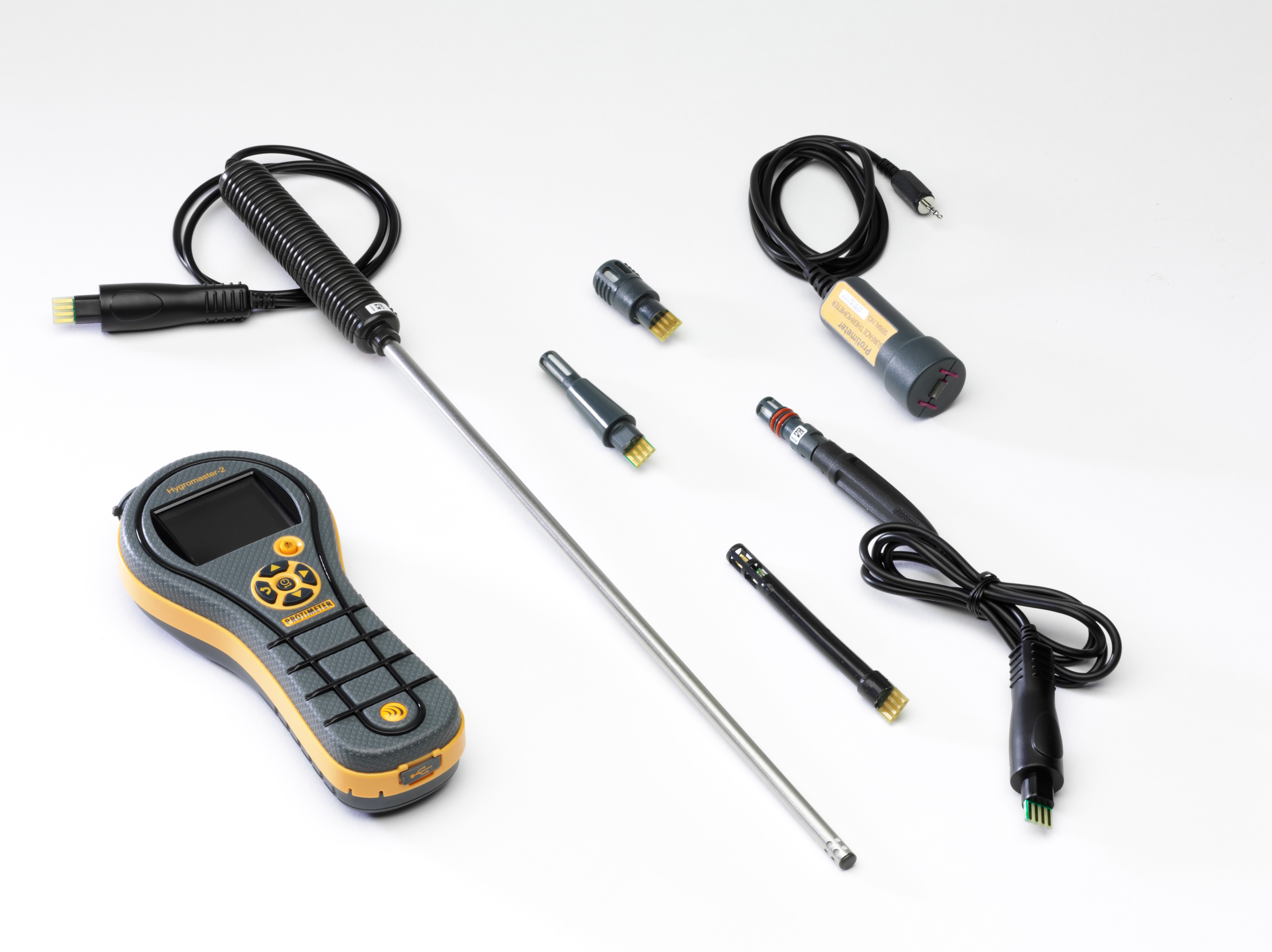

  HygroMaster 2 Short QuickStick HygroStick Cable and Software Carry Case Surface Temp Sensor Flooring Kit Humidity Extension Lead 30cm Humidity Probe
  POL7750 POL8751 POL4750 BLD7759 BLD7750-POU BLD5808 BLD7750-CKIT BLD5802 BLD8755
BLD7750 S O S S S O O O O
BLD7751 S S O S S O O O O
HygroMaster 2
POL7750
Short QuickStick
POL8751
HygroStick
POL4750
Cable and Software
BLD7759
Carry Case
BLD7750-POU
Surface Temp Sensor
BLD5808
Flooring Kit
BLD7750-CKIT
Humidity Extension Lead
BLD5802
30cm Humidity Probe
BLD5802
BLD7750
HygroMaster 2
S
Short QuickStick
O
HygroStick
S
Cable and Software
S
Carry Case
S
Surface Temp Sensor
O
Flooring Kit
O
Humidity Extension Lead
O
30cm Humidity Probe
O
BLD7751
HygroMaster 2
S
Short QuickStick
S
HygroStick
O
Cable and Software
S
Carry Case
S
Surface Temp Sensor
O
Flooring Kit
O
Humidity Extension Lead
O
30cm Humidity Probe
O

Note BLD7751 with short QuickStick is recommended for general measurement and BLD7750 with Hygrostick is recommended for high RH harsh environment application such as ERH concrete floor measurement
